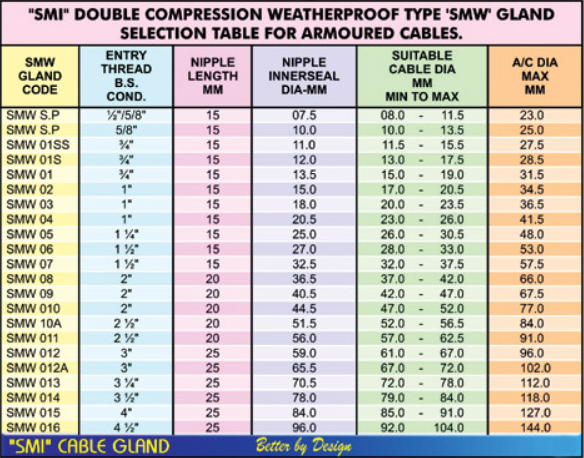

DOUBLE COMPRESSION WEATHERPROOF TYPE CABLE GLANDS
(FOR ARMOURED CABLE – SERIES “SMW”)

  • Designed for use with Armoured Cables, including PVC/XLPE/FRLS Power, Control & Instrumentation cables.
  • Suitable for both indoor and outdoor applications, providing sealing for cable sheath and inner sheath as needed.
  • Ensures positive armor locking, effective earth continuity, and enhanced mechanical strength for increased safety.
  • SMW Glands are weatherproof and undergo testing according to BS 6121 & IP 66 as per IS 13947 standards.
  • Available in sizes accommodating cable outer diameters ranging from 8mm to 110mm.

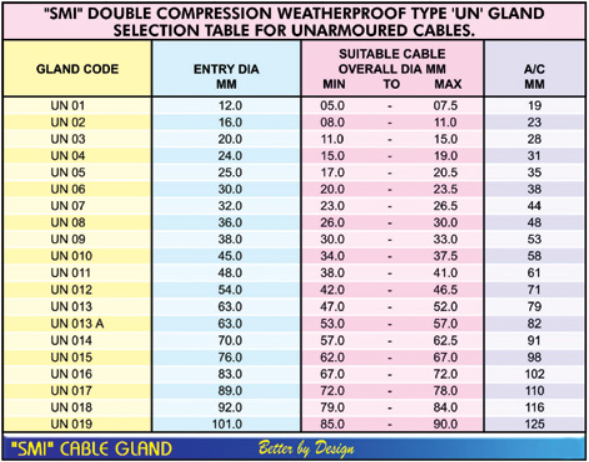

DOUBLE COMPRESSION WEATHERPROOF TYPE CABLE GLAND
(FOR UNARMOURED CABLES - SERIES “UN”)

  • Designed for use with Unarmoured Cables, including PVC/CLPE/FRLS Power, Control & Instrumentation cables.
  • Suitable for indoor and outdoor applications, offering sealing on the cable outer sheath at two points as needed.
  • Well-suited for braided or shielded instrumentation cables.
  • UN Glands are weatherproof and undergo testing according to BS 6121 & IP 66 as per IS 13947 standards.
  • Available in sizes accommodating cable outer diameters ranging from 5mm to 100mm.

SINGLE COMPRESSION GLANDS

  • Designed for use with both Armoured and Unarmoured Cables, including PVC/XLPE/FRLS for power, control, and instrumentation.
  • Intended for indoor use, specifically for sealing the cable outer sheath.
  • Features a high-quality rubber ring with a groove for long-lasting durability.
  • The single gland is versatile, accommodating a broad range of cables with varying outer diameters.
  • Offered in two varieties: the heavy-duty SIBG type and the light-duty commercial type.
    Available in sizes suitable for cable outer diameters ranging from 8mm to 110mm.

DOUBLE COMPRESSION FLAMEPROOF TYPE CABLE GLANDS
(FOR ARMOURED CABLE SERIES “SMF”)

  • Designed for use with Armoured Cables, including PVC/XLPE/FRLS for Power, Control & Instrumentation.
  • Suitable for both indoor and outdoor applications, providing sealing on both cable outer sheath and inner sheath as needed.
  • Ensures positive armor locking, effective earth continuity, and enhanced mechanical strength for increased safety.
  • Certified by CMRI Dhandad, DGFASLI, BIS, CCE Nagpur in accordance with IS 2148 for use with Gas groups I, IIA, IIB & IIC.

Export Series

A2 INDUSTRIAL GLAND

A2 Glands are cable glands designed to be weatherproof and suitable for use with all types of unarmoured cables. They can be employed in corrosive conditions when protected by shrouds. The gland entry is rated at IP66 when combined with SES entry thread seal. The PCP displacement seal ensures an effective seal (IP66) to the outer sheath, making it easy and fast to install. These glands are suitable for a wide range of environments and can be used both indoors and outdoors.

  • A2F is specifically designed for situations where it is crucial to provide either an IP66 or an explosion-proof seal on the outer sheath.
  • Accessories such as shrouds, earth tags, lock nuts, and SES entry thread seals are available. Entry threads are provided in metric thread as standard, with other thread forms like BS conduit, BSP, NPT, and PG available upon request.
  • Sizes are available from M16 to M100, and the glands are manufactured according to BS6121 PT-1, 1989, using brass as the standard material.

XT INDUSTRIAL GLAND

A brass gland designed for flexible wire braid cables, such as SY/CY, is utilized in situations where it is crucial to establish an IP66 seal on the outer sheath. Additionally, it securely clamps the wire braid to maintain electrical continuity.

  • Features & Applications: This gland facilitates braided armor and earth lock functions. The outer PCP displacement seal concept ensures an effective seal to the outer sheath, making it suitable for use in challenging environments. The installation process is both easy and quick.
  • Available in sizes ranging from M16 to M100, this gland is manufactured in accordance with BS6121 PT-1, 1989, using brass as the standard material.

BW TWO PART GLAND

The BW Cable Gland is designed for the use of all kinds of SWA cables in indoor and dry conditions. It features a straightforward two-part design with a low-resistance armor locking mechanism and lacks a sealing component.

  • Thread options include the standard Metric Thread, and alternative thread forms such as BS Conduct, BSP, NPT, and PG can be provided upon request. The gland is available in sizes ranging from M16 to M100 and comes with accessories like shrouds, lock nuts, and earth tags.
  • Manufactured in accordance with BS 6121 PT-1, 1989, the BW Cable Gland is constructed from brass as the standard material.

BWR THREE PART GLAND

The BWR Cable Gland, featuring a lock ring, is designed for use with SWA cables, providing positive armor locking, enhanced mechanical strength, and effective earth continuity. It is suitable for indoor and dry applications.

  • Thread options include the standard Metric thread, and alternative thread forms such as BS Conduit, BSP, NPT, and PG are available upon request. The gland is available in sizes ranging from M16 to M100 and is complemented by accessories like shrouds, lock nuts, and earth tags.
  • Manufactured in accordance with BS 6121 PT-1, 1969, the BWR Cable Gland is constructed from brass as the standard material.

CW INDUSTRIAL GLAND

The CW Cable Gland is designed for use with SWA cables and is suitable for both indoor and outdoor applications, providing sealing on the cable outer sheath. These weatherproof glands, when protected with a shroud, can also be used in corrosive conditions. They offer positive armor locking, effective earth continuity, and increased mechanical strength.

  • Options are available for cables with braided armor, double steel tape armor, and flat-armored cables. The entry threads are provided in Metric Thread as standard, with other thread forms such as BS conduit, BSP, NPT, and PG available upon request. The gland is offered in sizes ranging from M16 to M100 and comes with accessories including a shroud, lock nuts, earth tags, and SES entry thread seal.
  • Manufactured in accordance with BS 6121 PT-1, 1989, the CW Cable Gland is made from brass as the standard material.

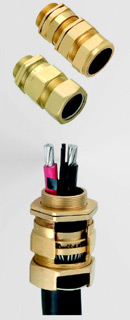

E1W IND. GLANDS

The E1W Cable Gland is designed for use with SWA cables and is suitable for both indoor and outdoor applications, providing sealing on both the cable outer sheath and inner sheath.

These weatherproof glands, when protected with a shroud, can also be used in corrosive conditions. They feature positive armor locking, effective earth continuity, and offer increased mechanical strength and safety.

  • Thread options include the standard Metric thread, and other thread forms such as BS Conduit, BSP, NPT, and PG are available upon request. The gland is available in sizes ranging from M16 to M100 and comes with accessories like shrouds, lock nuts, earth tags, and SES Entry Thread Seal.
  • Options are also available for cables with braided armor, double steel tape armor, and flat-armored cables. Manufactured in accordance with BS 6121 PT-1, 1989, the E1W Cable Gland is made from brass as the standard material.
